Transient Response of RC circuits

<Previous | Next>

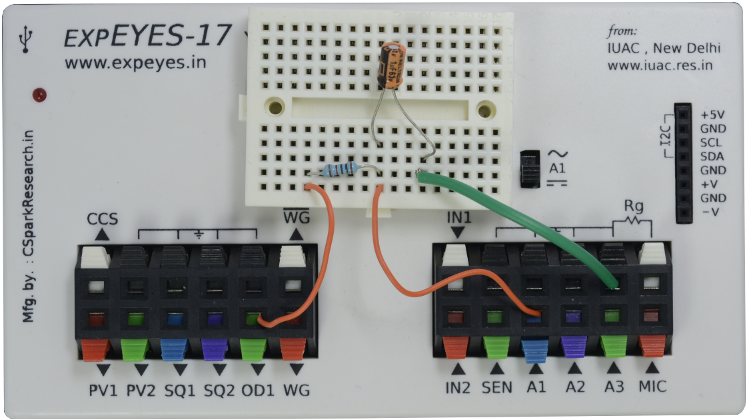

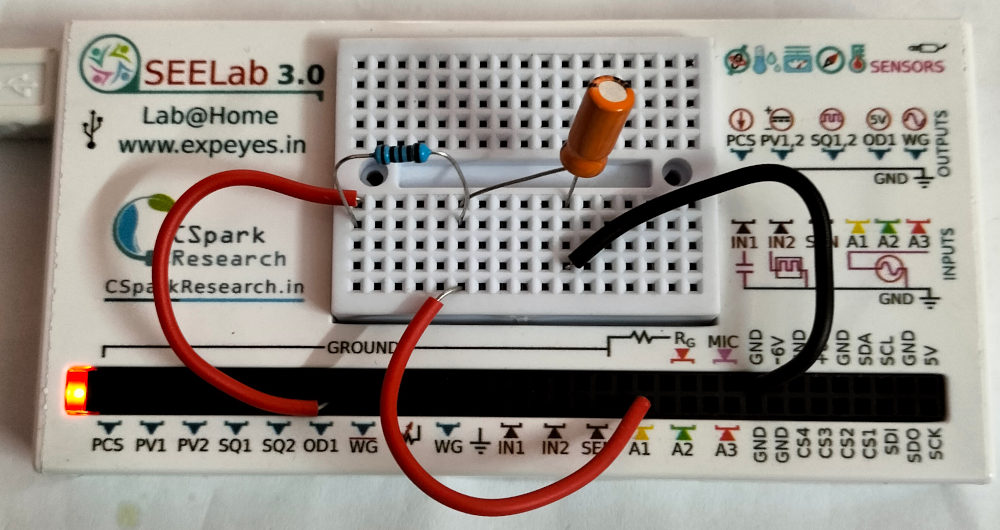

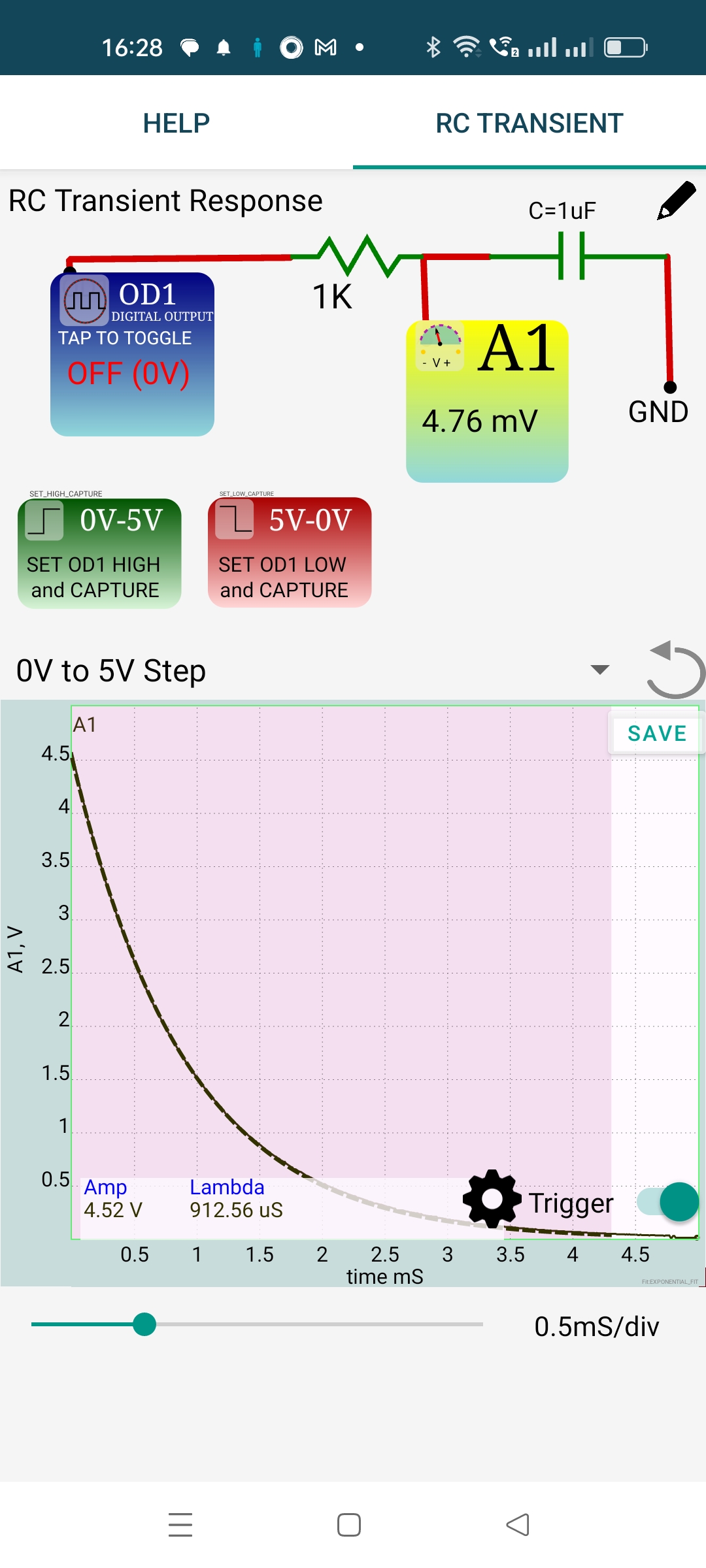

A voltage step is applied to a series RC circuit and the resulting voltage variation across the capacitor is captured. The value of RC can be extracted by fitting the data.

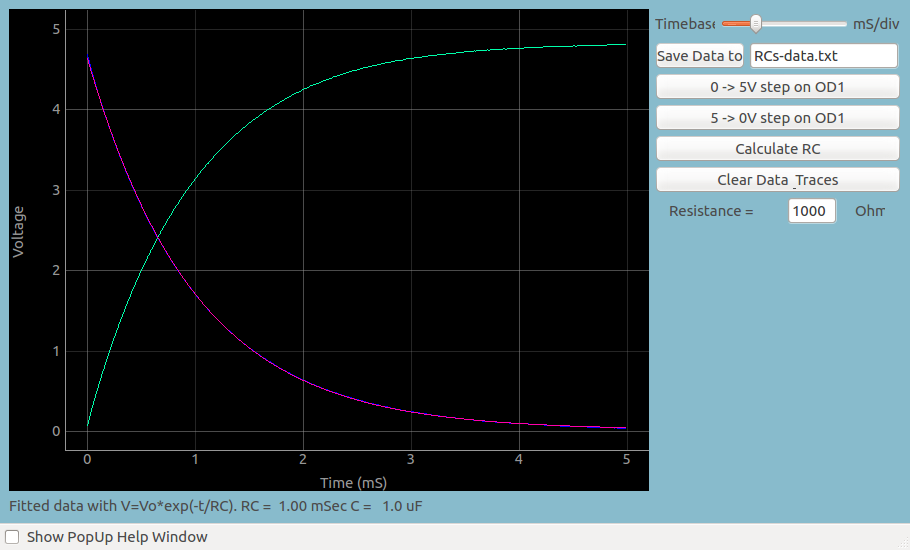

Result of the same experiment done on the PC is shown below.

RC Steady state
